No more digging!

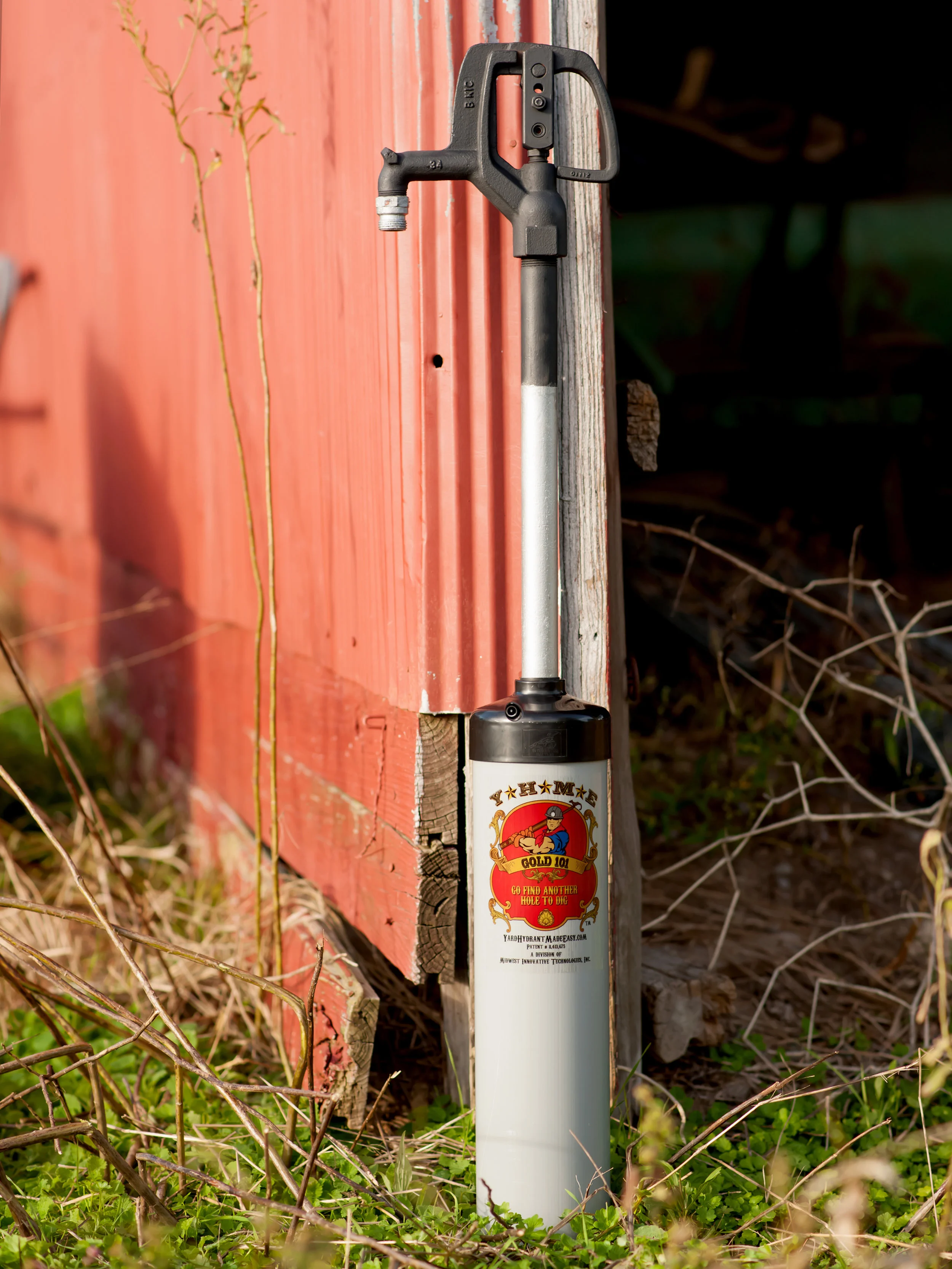

Save major time and money on your next yard hydrant replacement with the Yard Hydrant Made Easy™. The YHME’s telescoping casing accommodates 3/4” frost-free hydrants with bury depths of 3 to 7 feet.

If you need to backflow protection between the hydrant and the water supply, then check out our Model 303.

Yard Hydrant Made Easy™ Model 101 Features:

• Telescoping casing design for hydrant bury depths of 3’ up to 7’

• Lead-free brass pitless adapter for simple slide-in/slide-out hydrant replacement

• Tough, heavy-wall, UV-resistant PVC casing

• Durable ABS top cap and drain components

• Stainless steel hardware

• Protection against corrosion from soil or livestock

• Filtered drainage section to keep out dirt and improve drainage reliability

• Replaceable o-ring seal (each unit ships with a spare o-ring)

• Works with standard, 3/4” frost-free yard hydrants (top cap will not fit nominal 1” hydrants).*

• Maximum operating water pressure 100 psig

DON’T FORGET to check out our YHME Shutoff Kit — allowing you to shut off water to your hydrant while keeping the rest of the system operational.

*Note: Nominal hydrant size for standard hydrants on the market is derived from the inlet connection at the bottom of the hydrant, not the actual riser pipe size. Standard hydrants use a riser pipe that is one pipe-size higher than the nominal (inlet) size. This model of the YHME will only fit 3/4” hydrants, which have a 1” (1.315” actual outside diameter) riser pipe. If you are using a 1” hydrant, which has a 1-1/4” (1.66” actual outside diameter) riser pipe, then check out our Model 101K+ or 303K+. Contact us if you have any questions.

Click here to see our demonstration video.

Click here to watch our installation video.

Click here for installation instructions.
